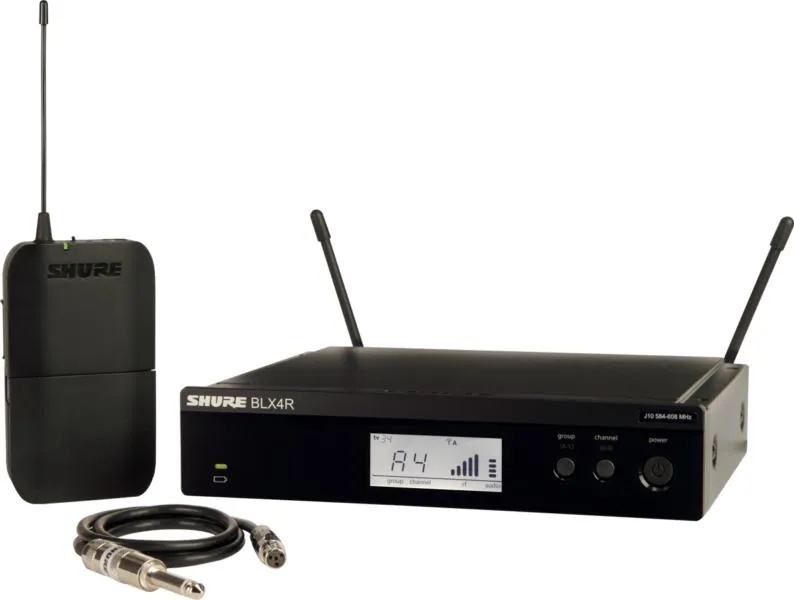

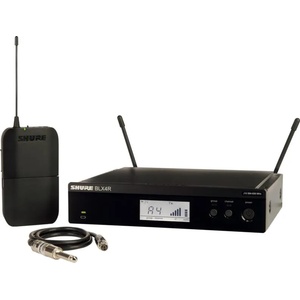

Shure BLX14R, SM китарна серия, UHF безжичен микрофон с BLX1 "pocket" трансмитер Quick-Scan функция за избор на свободни честоти, джобен предавател с 4 Pin TQG конектор, 9,5" 1U приемник с метален корпус, отвиващи се антени, XLR- и Жак изходи, LCD информационен екран, включва WA302 китарен кабел и комплект за монтиране в рак



System technical specifications

Compatible systems per frequency band (up to): 12
Selectable frequencies: 150
Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
Audio Reference Companding: No
Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
Antenna Options: No
Receiver Network Ability: No
PC Control: No
Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
Case: Included Only with BLX4 Sets
Transmitter Display: LED
Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
Battery, Endurance: 2AA, up to 14h
Environment: Daily Touring

Further Technical Specs

Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
Available Frequencies: Between 524-865 MHz (available frequencies depend on applicable regulations in country where system used)
Audio Range: 50-15,000 Hz (dependent on microphone type)
Transmitter RF Output Power: 10 mW, typical (varies by region)
Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
Battery Life: Up to 14 hours
Dynamic Range: 100 dB A-weighted
System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation,  1 kHz tone)
Operating Temperature Range: -18°C (0°F) - +50°C (122°F)
Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
BLX4R: 12-15 V DC @ 260 mA, supplied by external power supply (tip positive)

Component Specifications:

BLX4R Receiver

Output Impedance:
- XLR connector: 200 O
- 6.35 mm (1/4") connector: 50 O
Audio Output Level, Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector: -20.5 dBV (into 100 kO load)
- 6.35 mm (1/4") connector: -13 dBV (into 100 kO load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 50 mm X 198 mm X 163 mm H x W x D
Weight, without antennas: 998 g
Housing: Molded ABS, steel
Power Requirements: 12-15 V DC @ 260 mA, supplied by external power supply (tip positive)

BLX1 Bodypack Transmitter

Audio Input Level:

- gain max: -16 dBV maximum
- gain min (0 dB): +10 dBV maximum

Gain Adjustment Range: 26 dB
Input Impedance: 1 M
RF Transmitter Output: 10 mW, typical, varies by region
Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
Weight: 75 g, without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
